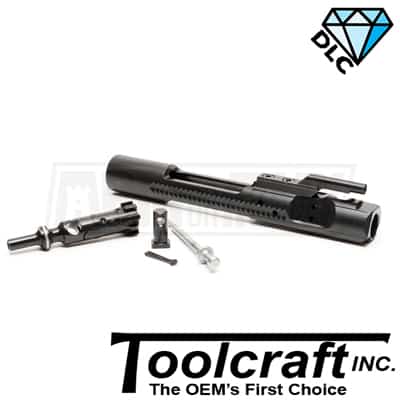

Toolcraft 7.62×39 Bolt Carrier Group | DLC
The Toolcraft 7.62×39 Bolt Carrier Group with Diamond-Like Carbon finish is built for AR-15 platforms chambered in 7.62x39mm. Using a 9310 steel bolt and full-auto profile 8620 steel carrier, this BCG combines caliber-specific bolt geometry with Toolcraft’s hard, low-friction DLC treatment for smooth cycling, excellent wear resistance, and easier maintenance.
The 7.62×39-specific bolt uses a .125-inch bolt face depth and is shot peened and Magnetic Particle Inspected for quality control. A 4140 steel extractor, Mil-Spec extractor O-ring, and triple gas rings support reliable extraction and consistent gas sealing in properly configured AR-15 systems.
The DLC finish is one of the defining features of this configuration. Rated at approximately 90 Rockwell, the Diamond-Like Carbon treatment provides an extremely hard, slick surface that helps reduce friction, resist wear and corrosion, and limit carbon adhesion. The result is a carrier group that remains easy to clean even after extended use.
The 8620 steel carrier uses a full-mass M16 profile for conventional AR-15 cycling characteristics. A 4130 steel gas key is secured with Grade 8 fasteners and properly staked, while an 8620 steel cam pin and 416 stainless steel firing pin complete the assembly.
Key Features
- Designed for 7.62×39 AR-15 platforms
- Full-auto M16 carrier profile
- 9310 steel bolt
- 8620 steel carrier
- Diamond-Like Carbon (DLC) finish
- .125-inch bolt face depth
- Approximately 90 Rockwell surface hardness
- Low-friction, high-lubricity surface
- Excellent wear and corrosion resistance
- Shot-peened bolt
- Magnetic Particle Inspected (MPI)
- 4140 steel extractor
- Mil-Spec extractor O-ring
- Triple gas rings
- 4130 steel gas key
- Grade 8 gas key fasteners
- Properly staked gas key
- 8620 steel cam pin
- 416 stainless steel firing pin
- Forward assist serrations
- Approximately 11.52 oz weight
- Made in the USA
- Backed by Toolcraft’s lifetime warranty
7.62×39-Specific Bolt Geometry
The 9310 steel bolt is machined with a .125-inch bolt face depth to accommodate the larger 7.62×39 case head while retaining standard AR-15 carrier architecture. Proper barrel and bolt compatibility should always be confirmed when assembling a 7.62×39 upper.
Diamond-Like Carbon Finish
Toolcraft’s DLC treatment gives this BCG a distinct advantage over more traditional finishes. Its extremely hard, slick surface helps reduce drag between reciprocating components, resists wear and corrosion, and makes carbon fouling easier to remove during routine cleaning.
Full-Mass M16 Carrier
The 8620 steel carrier uses a full-auto M16 profile to preserve standard reciprocating mass and dependable cycling characteristics. The carrier includes forward assist serrations and a properly staked 4130 steel gas key secured with Grade 8 hardware.
Compatibility
- AR-15 platforms chambered in 7.62×39
- Compatible 7.62×39 barrels using a .125-inch bolt face configuration
- Standard AR-15 upper receivers
- Direct-impingement gas systems
Product Information
| Weight | 12 oz |
|---|---|
| Dimensions | 8.5 × 1.5 × 1.5 in |
| Manufacturer | Toolcraft |
| Platform | AR15 |
| Caliber | 7.62×39 |
| Carrier Material | 8620 Steel |
| Bolt Material | 9310 Steel |
| Finish | Diamond-Like Carbon (DLC) |
| Color | Black |
| Compatibility | Standard AR15 components |
| Features | MPI Inspected, Shot Peened, FA Serrations |
| Made in USA | Yes |
| Weight | 11.52oz |
