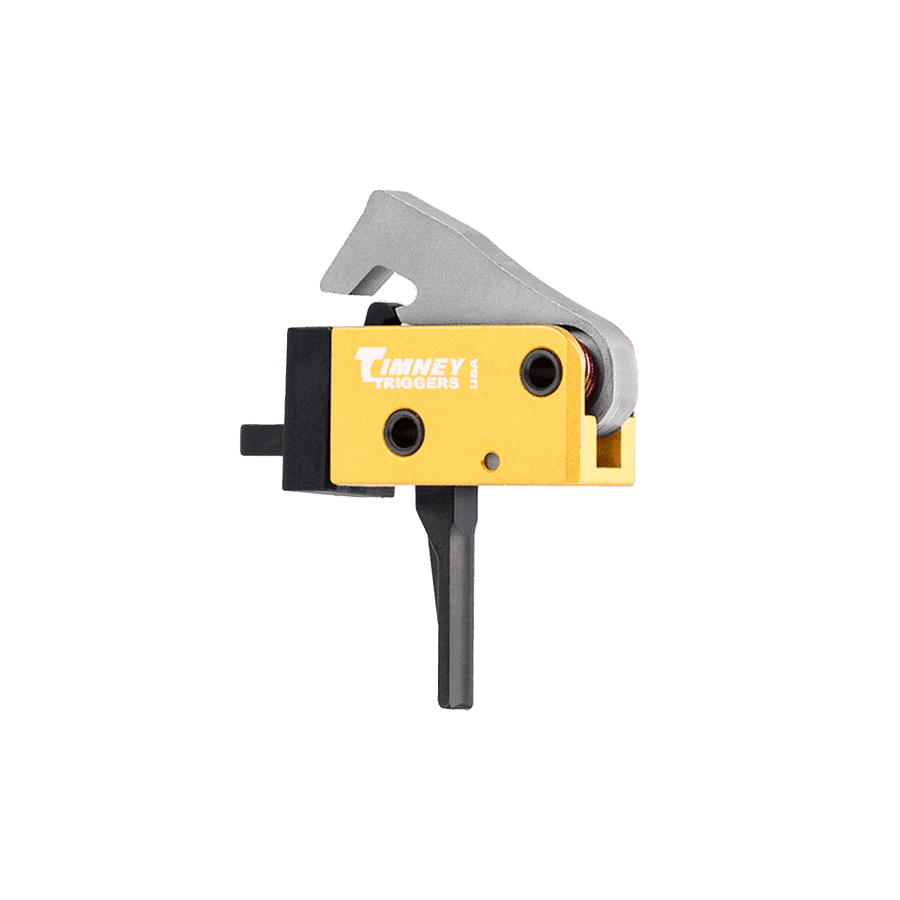

Timney AR PCC Single Stage Trigger | Flat
The Timney AR PCC Single Stage Trigger is a purpose-built drop-in trigger upgrade for AR-style pistol caliber carbines. This flat-shoe 681-ST configuration is designed for PCC platforms chambered in 9mm, .40 S&W, and .45 ACP, giving shooters a clean single-stage pull with a factory-tuned 2.5-3 lb pull weight.
Unlike a general AR trigger adapted into a pistol caliber carbine, the AR PCC trigger is built specifically around PCC use. The self-contained assembly installs into compatible AR-style PCC lowers and uses the firearm’s original hammer and trigger pins as well as the original safety, keeping installation straightforward while preserving familiar lower-receiver controls.
The flat trigger shoe provides a straight trigger face for consistent finger placement and a direct rearward press. For shooters who prefer a single-stage PCC trigger, this model offers immediate engagement, a crisp break, and a no-creep trigger feel well suited for range use, recreational shooting, and competition-oriented PCC builds.

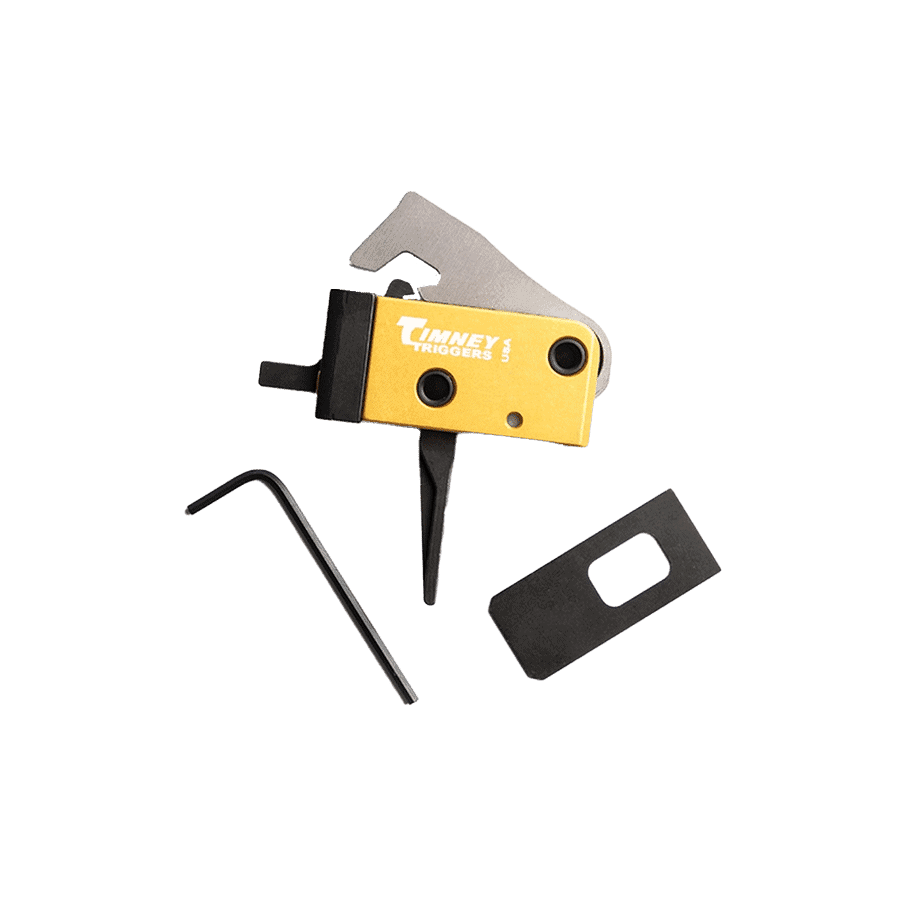

Timney designs the AR PCC trigger as a complete drop-in unit with no gunsmithing, fitting, or adjustment required. It uses a 6061 aluminum housing with S7 and A2 tool-steel internal components, and the trigger is finished with anodized and QPQ nitride treatments for durability and long service life.
Each trigger is individually tested and calibrated by hand before leaving the factory. The 681-ST is a strong option for builders looking to improve trigger consistency in an AR9 or other compatible pistol caliber carbine without moving to a two-stage trigger system.
Trigger does NOT include Trigger & Hammer Pins!
- Platform Compatibility: AR-style pistol caliber carbines
- Caliber Compatibility: 9mm, .40 S&W, and .45 ACP PCC platforms
- Trigger Type: Single-stage drop-in trigger
- Trigger Shoe: Flat / straight
- Pin Size: .154 small pin
- Pull Weight: Factory tuned at 2.5-3 lb
- Trigger Pull: Crisp, clean, no-creep single-stage break
- Adjustment: Factory tuned; no adjustment required
- Installation: Drop-in design; no gunsmithing required
- Installation Hardware: Uses the firearm’s original hammer and trigger pins
- Safety Compatibility: Uses the firearm’s original safety
- Housing Material: 6061 aluminum
- Internal Components: S7 tool steel and A2 tool steel
- Finish: Anodized and QPQ nitride
- Assembly: Individually tested and calibrated by hand
- Made In: USA
Product Information
| Weight | 8 oz |
|---|---|
| Dimensions | 8 × 8 × 2 in |
| Manufacturer | Timney |
| Platform | AR9 |
| Trigger Type | Drop In, Fixed Pull Weight |
| Trigger Action | Single Stage |
| Total Pull Weight | 2lb – 3lb |
| Trigger Shoe | Flat |
| Material | S7 Tool Steel, A2 Tool Steel |
| Finish | Anodized, QPQ Nitride |
| Color | Black, Gold |
| Compatibility | Standard AR15 components |
| Made in USA | Yes |
| Pin Size | 0.154 (Small Pin) |
| Housing | 6061 Aluminum |
