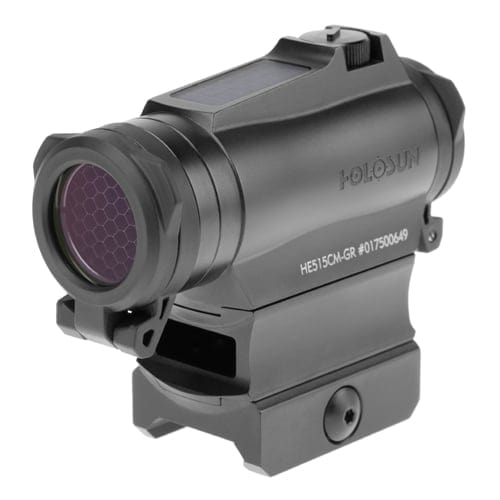

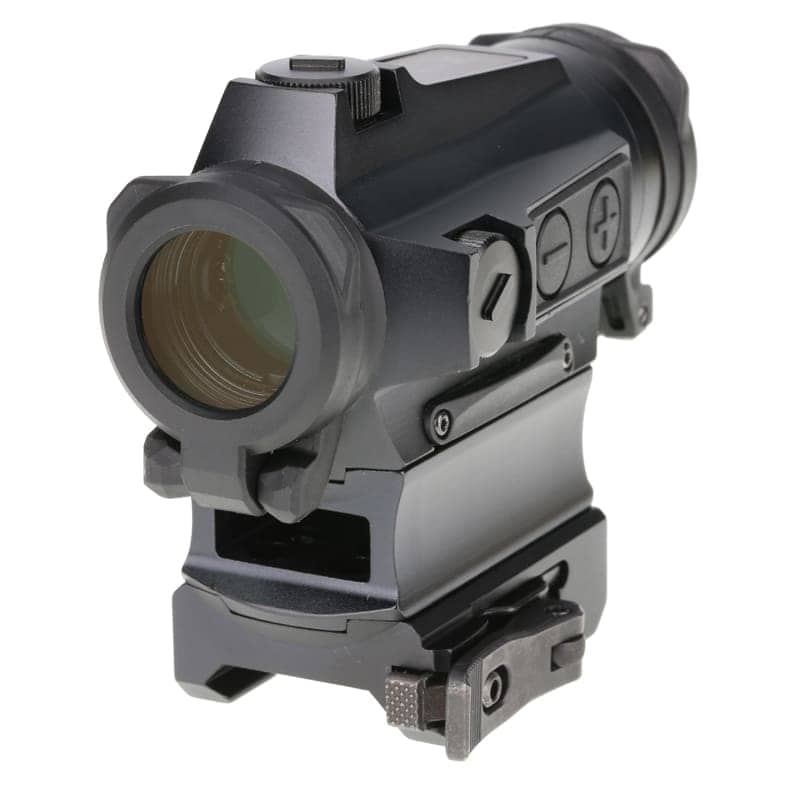

Holosun 515CM

The Holosun 515CM is a hard-use enclosed rifle optic available with either a red or green Multi-Reticle System. Select the preferred reticle color from the available options above. Both configurations combine a compact 20mm sight window, Solar Failsafe, Shake Awake, protective lens covers, and a quick-detach lower 1/3 co-witness mount for rifles, carbines, and pistol-caliber carbines.

Holosun’s Multi-Reticle System allows the shooter to choose between a precise 2 MOA dot or a 2 MOA dot surrounded by a 65 MOA circle. The uncluttered dot supports deliberate aiming and increased precision, while the circle-dot configuration provides a larger visual reference for rapid acquisition, close-range engagements, and faster target transitions.

The Red model uses a 650nm Super LED, while the Green model uses a high-visibility 540nm Super LED. Both versions provide 12 brightness settings, including two settings compatible with night-vision equipment, and deliver up to 50,000 hours of battery life at setting six.

Solar Failsafe supplements the CR2032 battery with available ambient light and supports automatic reticle-brightness adjustment when the optic is used in Auto Mode. Manual Mode gives the shooter direct control over reticle intensity for consistent visibility across changing environments.

Shake Awake conserves battery life by placing the optic into standby after a period of inactivity. Movement immediately restores the reticle at the previously selected setting, helping keep the sight ready without requiring the shooter to manually reactivate it.

A tool-free side battery tray allows the CR2032 battery to be replaced without removing the sight from the firearm or disturbing its zero. Lockout Mode helps prevent accidental button presses from changing the selected brightness or operating mode.

The Holosun 515CM includes clear, removable, and rotating lens caps that protect the optical surfaces from dust, moisture, and debris. A removable kill flash further reduces glare and visible reflections from the objective lens while adding another layer of protection during demanding use.

Its rugged aluminum housing is rated IP68 for resistance to water and dust. The included quick-detach Picatinny mount positions the optic at a 1.63-inch lower 1/3 co-witness height and allows rapid removal or installation without separate tools.

Holosun 515CM Features

• Available with a Red or Green reticle
• Compact enclosed 20mm rifle optic
• Holosun Multi-Reticle System
• Selectable 2 MOA dot or 2 MOA dot with 65 MOA circle
• Red model uses a 650nm Super LED
• Green model uses a 540nm Super LED
• Up to 50,000 hours of battery life at setting six
• Solar Failsafe technology
• Shake Awake motion activation
• Automatic and manual brightness modes
• 12 brightness settings with two night-vision-compatible levels
• Memory function recalls the previous setting
• Lockout Mode helps prevent unintended adjustments
• Tool-free side-loading CR2032 battery tray
• Battery replacement without removing the optic
• Clear removable and rotating lens caps
• Removable kill flash
• Multi-coated optical system
• True 1X magnification
• Unlimited eye relief
• Parallax-free design
• Quick-detach Picatinny mount
• 1.63-inch lower 1/3 co-witness height
• IP68 waterproof and dustproof construction
• 1,000G vibration rating

Optical Specifications

• Reticle color: Red or Green
• Red wavelength: 650nm
• Green wavelength: 540nm
• Reticle: 2 MOA dot and 65 MOA circle
• Selectable reticles: 2 MOA dot or circle-dot
• Magnification: 1X
• Objective window: 20mm diameter
• Eye relief: Unlimited
• Parallax: Parallax-free
• Lens treatment: Multi-coated

Electronic Specifications

• Battery type: CR2032
• Battery location: Tool-free side tray
• Battery life: Up to 50,000 hours at setting six
• Brightness settings: 10 daylight and 2 night vision
• Solar Failsafe: Yes
• Shake Awake: Yes
• Automatic shutoff: Yes
• Memory function: Yes
• Automatic brightness adjustment: Yes
• Manual brightness adjustment: Yes
• Lockout Mode: Yes

Mechanical and Physical Specifications

• Housing material: High-strength aluminum
• Surface finish: Hard anodized
• Housing color: Black
• Adjustment per click: 0.5 MOA
• Windage and elevation travel: ±50 MOA
• Weight: Approximately 4.06 oz with mount
• Mounting interface: Picatinny rail
• Mount type: Quick detach

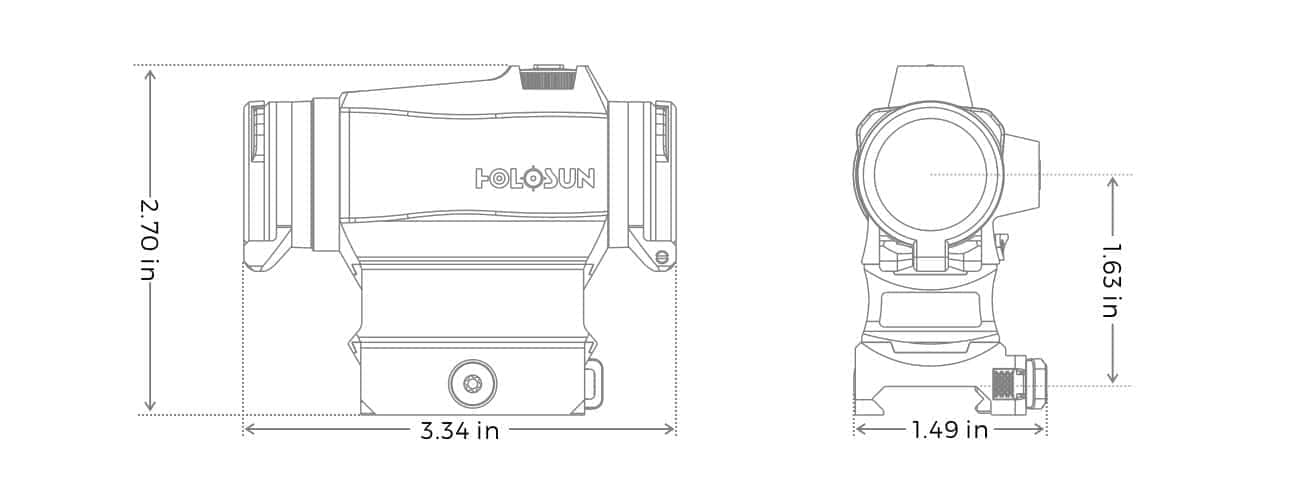

• Optical center height: 1.63″ lower 1/3 co-witness
• Environmental rating: IP68
• Vibration rating: 1,000G
• Operating temperature: -30°C to 60°C
• Storage temperature: -40°C to 70°C

Included Components

• Holosun 515CM optic in the selected reticle color
• Quick-detach lower 1/3 co-witness Picatinny mount
• Clear rotating and removable lens covers
• Removable kill flash
• CR2032 battery
• Multi-tool
• Lens cloth
• User manual
• Warranty documentation

** This product must ship to your billing address **
