Battle Arms Development WORKHORSE 10.5" Complete AR-15 Upper | .223 / 5.56 NATO

Battle Arms Development WORKHORSE 10.5″ Complete AR-15 Upper | .223 Wylde / 5.56 NATO

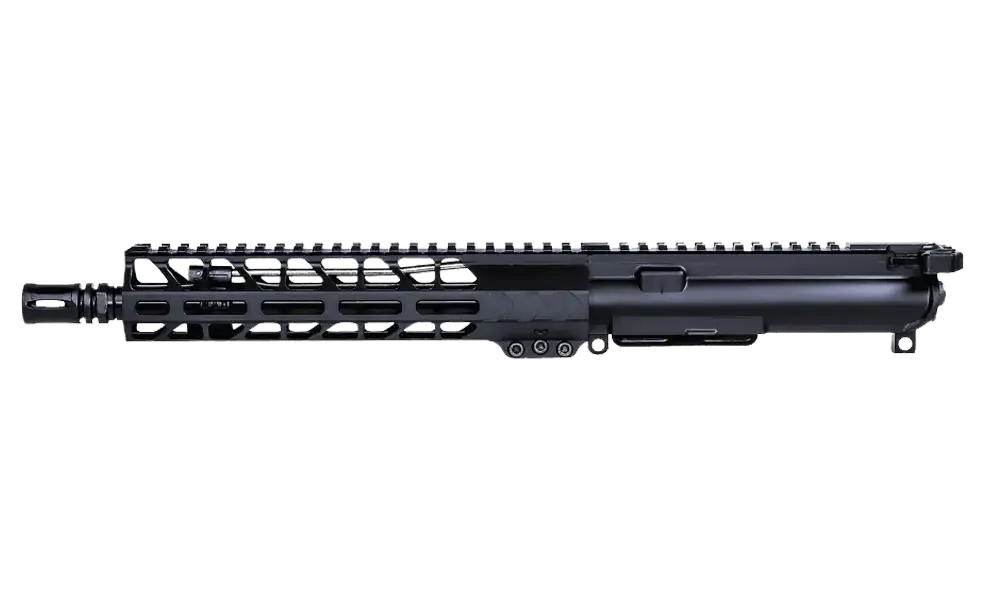

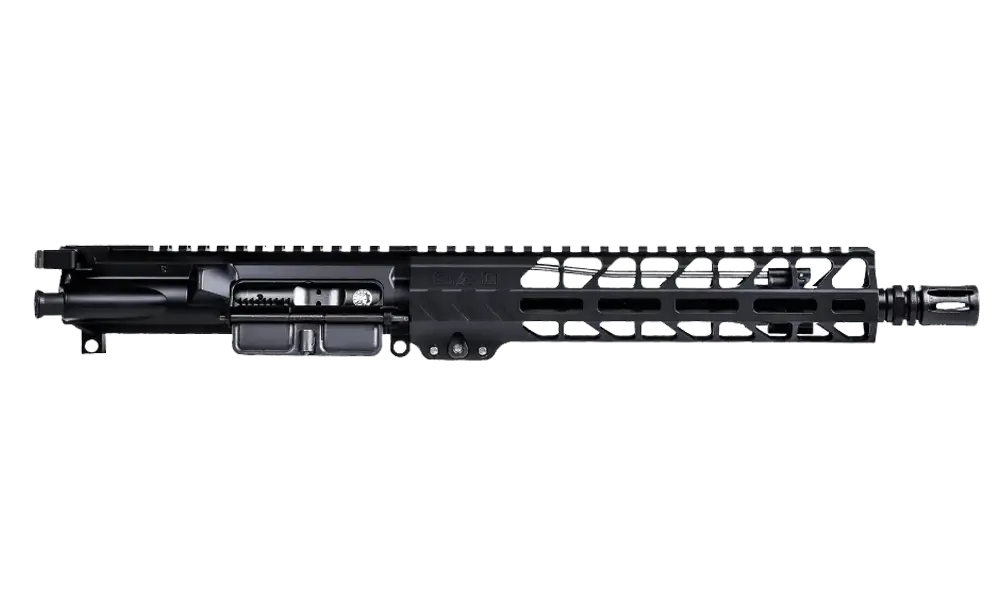

The Battle Arms Development WORKHORSE 10.5″ Complete AR-15 Upper is built around a compact barrel and handguard package for AR configurations where reduced overall length is a primary consideration. Chambered in .223 Wylde and compatible with both .223 Remington and 5.56 NATO ammunition, this complete upper combines a 10.5-inch barrel, 9.5-inch free-float M-LOK handguard, bolt carrier group, and RACK ambidextrous charging handle in a ready-to-install assembly.

The short 10.5-inch barrel creates a markedly more compact package than the 16-inch WORKHORSE upper, making this model better suited to appropriately configured AR pistols and registered short-barreled rifle builds. The barrel is machined from 4150 Chrome Moly Vanadium steel, treated with a durable nitride finish, and uses a 1:8 twist rate.

A carbine-length gas system and low-profile gas block are paired with the compact barrel configuration. Surrounding the barrel is a 9.5-inch WORKHORSE M-LOK free-float handguard, providing accessory mounting space while keeping the front end short and maneuverable.

The forged 7075-T6 upper receiver incorporates M4 feed ramps and a hardcoat-anodized Black finish. Because the assembly includes both the bolt carrier group and Battle Arms Development RACK ambidextrous charging handle, it arrives substantially more complete than a barreled upper that requires those core components separately.

Key Features

• Compact 10.5-inch complete AR-15 upper receiver assembly
• Chambered in .223 Wylde
• Compatible with .223 Remington and 5.56 NATO ammunition
• 10.5-inch 4150 Chrome Moly Vanadium barrel
• Durable Nitride barrel finish
• 1:8 twist rate
• Carbine-length gas system
• 9.5-inch WORKHORSE free-float M-LOK handguard
• Forged 7075-T6 upper receiver
• M4 feed ramps
• Complete bolt carrier group included
• Battle Arms Development RACK ambidextrous charging handle included
• Low-profile gas block
• A2 flash hider
• 1/2×28 muzzle threads

Compact 10.5-Inch AR Upper

The defining feature of this WORKHORSE configuration is its 10.5-inch barrel. Compared with a conventional 16-inch upper, the shorter barrel substantially reduces front-end length and creates a more compact AR package for appropriately configured pistol or SBR applications.

9.5-Inch M-LOK Handguard

A 9.5-inch free-float M-LOK handguard closely follows the length of the barrel while leaving the muzzle device exposed. The shorter rail keeps the upper compact but still provides useful mounting space for lights, sling attachments, hand stops, and other M-LOK accessories.

.223 Wylde Versatility

The .223 Wylde chamber supports both .223 Remington and 5.56 NATO ammunition, while the 1:8 twist rate provides versatility across commonly used projectile weights. This gives the compact WORKHORSE upper broad ammunition compatibility despite its shorter overall configuration.

Compatibility

• Designed for compatible AR-15 lower receivers
• Appropriate for legally configured AR pistols and registered SBR applications
• Compatible with .223 Remington ammunition
• Compatible with 5.56 NATO ammunition
• Standard 1/2×28 muzzle-device compatibility
• Compatible with M-LOK accessories
