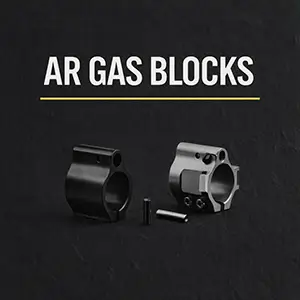

AR Gas Blocks

AR Gas Blocks regulate the flow of high-pressure gas from the barrel to the bolt carrier group, directly influencing reliability, recoil impulse, and overall performance in both AR-15 and AR-10 platforms. Whether you are building a lightweight 5.56 rifle or a larger-frame .308 system, selecting the correct gas block ensures proper cycling, consistent extraction, and long-term durability.

Because gas system geometry differs between small-frame and large-frame platforms, understanding how AR gas blocks function is essential before choosing adjustable features, finishes, or mounting styles. Builders comparing components can explore complete gas system options for the AR-15 platform at AR-15 gas systems and for larger-frame rifles at AR-10 gas systems to confirm compatibility before final selection.

What AR Gas Blocks Do

When a round is fired, expanding gases travel down the barrel behind the projectile. A small gas port drilled into the barrel allows a portion of that gas to divert upward into the gas block. The gas block captures this pressure and directs it into the gas tube, which carries it back to the bolt carrier group.

This redirected gas forces the bolt carrier rearward, initiating extraction, ejection, and chambering of the next round. Without a properly aligned AR gas block, the rifle may short-stroke, fail to eject, or experience inconsistent cycling.

Proper alignment between the barrel’s gas port and the gas block channel is critical. Even slight misalignment can restrict gas flow and affect dwell time. Dwell time refers to the period between the bullet passing the gas port and exiting the muzzle. This window determines how much gas pressure is available to cycle the system.

• The gas block captures expanding gas from the barrel port.
• Gas is directed through the gas tube to cycle the action.
• Correct alignment ensures consistent pressure delivery.
• Dwell time influences reliability and recoil impulse.

AR-15 vs AR-10 Gas Block Differences

Although AR-15 and AR-10 platforms operate on the same direct impingement principle, their gas requirements differ significantly. The AR-15 platform commonly chambers 5.56 NATO or .223 Remington cartridges, while the AR-10 platform often chambers .308 Winchester or similar larger cartridges. These differences affect gas volume and pressure curves.

Barrel journal diameter is one of the most important distinctions. Many AR-15 barrels use a .750-inch journal, though other sizes exist. AR-10 barrels may use .750, .875, or .936-inch journals depending on profile and manufacturer. Selecting the wrong diameter AR gas block will prevent proper installation.

Gas tube length also varies. Because AR-10 receivers and barrels are typically longer, gas system lengths must match both platform and barrel length. An AR-10 gas block must align with a gas tube designed specifically for that system length.

Builders asking whether an AR10 gas block is different from an AR15 gas block should understand that while the function is identical, sizing, pressure tuning, and compatibility differ. Proper measurement of barrel journal diameter is essential before purchasing.

• AR-15 commonly uses .750-inch journal diameters.
• AR-10 may use .750, .875, or .936-inch journals.
• Larger-frame rifles require careful gas tuning.
• Gas tube length must match platform and barrel length.

Gas System Lengths Explained

Gas system length plays a major role in recoil impulse and cycling smoothness. Common configurations include Pistol, Carbine, Mid-Length, and Rifle gas systems. The distance between the chamber and the gas port determines pressure timing and dwell time.

Carbine-length systems place the gas port closer to the chamber. This results in higher pressure entering the system earlier in the firing cycle. While reliable, carbine systems may produce sharper recoil impulse in certain configurations.

Mid-Length systems extend the gas port slightly farther down the barrel. On 16-inch AR-15 rifles, mid-length gas systems are often favored for smoother cycling and reduced perceived recoil compared to carbine systems.

Rifle-length systems position the gas port farther forward, allowing pressure to drop before entering the system. This generally produces a softer impulse and is common on longer barrels, especially in AR-10 platforms chambered in .308 Winchester.

Pistol-length systems are typically used on shorter barrels. These configurations require precise gas control to maintain reliability due to higher operating pressures.

• Carbine systems provide strong, reliable cycling.
• Mid-Length systems often smooth recoil on 16-inch barrels.
• Rifle systems extend dwell time for softer impulse.
• Pistol systems require careful gas management.

Adjustable vs Fixed Gas Blocks

Fixed AR gas blocks allow full gas flow from the barrel port into the gas system. They are simple, durable, and commonly used in duty-oriented or defensive builds where minimal adjustment is desired.

Adjustable gas blocks allow users to regulate the amount of gas entering the system. By restricting excess gas, shooters can reduce recoil impulse, minimize bolt speed, and tune rifles for suppressor use.

Overgassing can increase wear on internal components and produce sharper recoil. Adjustable AR gas blocks provide the ability to fine-tune performance, especially in suppressed configurations where backpressure increases.

For many builders, the decision between adjustable and fixed designs depends on intended use. Competition shooters and suppressor users often prefer adjustable models, while general-purpose rifles may benefit from the simplicity of fixed blocks.

• Adjustable blocks allow fine-tuning of gas flow.
• Fixed blocks prioritize durability and simplicity.
• Suppressor use often benefits from adjustable tuning.
• Proper adjustment reduces unnecessary component wear.

Finishes and Materials

AR gas blocks operate under extreme heat and pressure. Finish and material selection contribute to corrosion resistance and longevity. Common finish options include Diamond-Like Carbon (DLC), QPQ Nitride, Phosphate, Bead Blasted, Satin, and Stainless Steel.

Diamond-Like Carbon (DLC) coatings offer high surface hardness and wear resistance. QPQ Nitride enhances corrosion resistance and surface durability through a salt bath nitriding process. Phosphate finishes provide traditional corrosion protection with a matte appearance.

Stainless steel gas blocks offer inherent corrosion resistance, while bead blasted and satin finishes focus on uniform surface appearance. Because gas blocks are exposed to high heat, finish durability is more than cosmetic—it affects long-term performance.

• DLC provides enhanced surface hardness.
• QPQ Nitride improves corrosion resistance.
• Phosphate offers traditional protective coating.
• Stainless steel resists rust in harsh environments.

Choosing the Correct Gas Block

Selecting the correct AR gas block begins with confirming your platform. Determine whether your build is AR-15 or AR-10, then measure the barrel journal diameter precisely using calipers. This measurement ensures proper fitment.

Next, confirm your gas system length—Pistol, Carbine, Mid-Length, or Rifle. The gas block must align with the appropriate gas tube length. After confirming sizing, decide whether adjustable tuning is necessary for your intended use.

Finally, select a finish appropriate for your environment and maintenance expectations. By following a structured checklist, builders can confidently choose an AR gas block that supports reliability and long-term durability.

• Confirm AR-15 or AR-10 platform.
• Measure barrel journal diameter accurately.
• Verify gas system length compatibility.
• Decide between adjustable or fixed configuration.
• Select finish based on durability needs.

FAQ

What size gas block do I need for my AR15?
Measure the barrel journal diameter, commonly .750 inch on many AR-15 barrels. Always confirm the exact measurement before purchasing.

Are AR10 gas blocks different from AR15?
Functionally similar, but sizing and pressure requirements differ. AR-10 builds often use larger barrel journals and require careful gas tuning.

Is an adjustable gas block worth it?
For suppressor use or competition builds, adjustable gas blocks allow fine-tuning and can reduce recoil and wear.

What gas system length is best for a 16-inch AR15?
Mid-Length systems are commonly favored for smoother cycling on 16-inch barrels, though carbine systems remain reliable.

Can I use a rifle-length gas system on an AR10?
Yes, rifle-length systems are common on longer AR-10 barrels and often provide a smoother recoil impulse.
