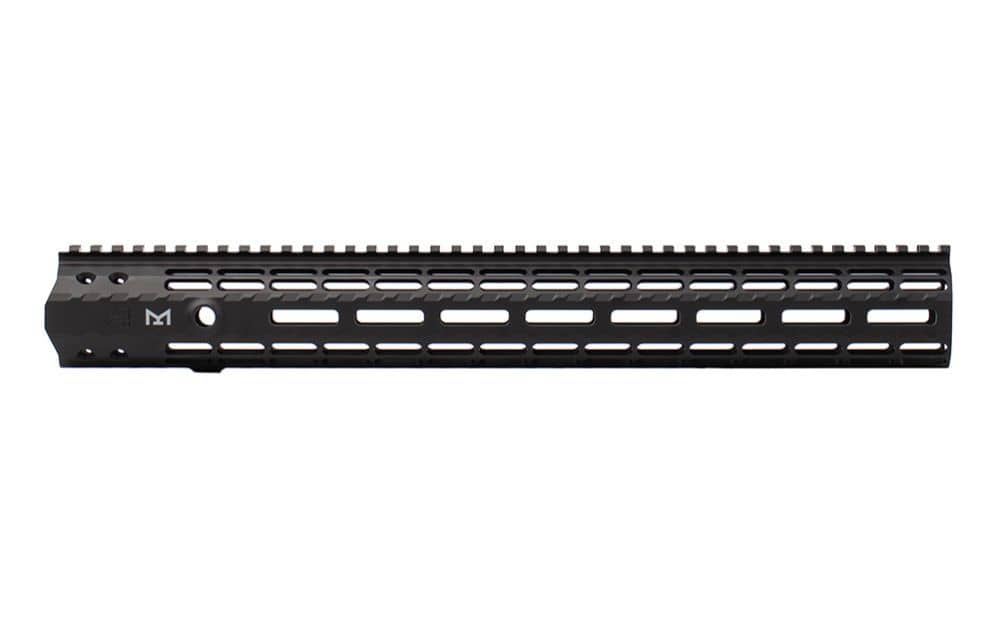

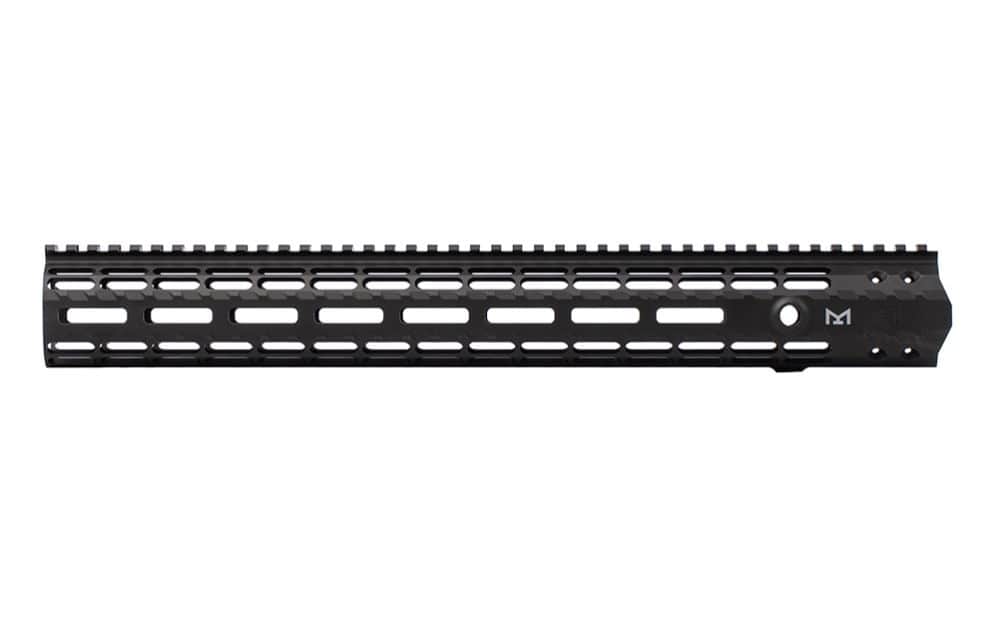

Aero Precision M5 16.6" Enhanced Gen 2 M-LOK Handguard | Black Anodized

Aero Precision M5 16.6″ Enhanced Gen 2 M-LOK Handguard | Black Anodized

Lightweight, Rugged, and Designed for Large-Frame Precision Builds

The Aero Precision M5 16.6″ Enhanced Gen 2 M-LOK Handguard delivers a free-float, lightweight design engineered for strength, modularity, and precision. Specifically built for the M5 .308 and M5E1 platforms, this handguard provides exceptional rigidity and stability while maintaining a sleek, low-profile aesthetic. The M-LOK mounting system allows maximum customization with modern accessories, while the Type III Class 2 black anodized finish ensures lasting durability and corrosion resistance.

Features

• One-Piece Free-Float Design – Improves accuracy by removing external barrel pressure.
• Built-In Anti-Rotation Tabs – Prevents movement and ensures consistent alignment.
• Continuous Top Picatinny Rail – Ideal for mounting optics and accessories.
• Scalloped Rail Design – Reduces weight while maintaining strength and ergonomics.
• Inside Diameter (Forward Section): 1.72″ – Fits most 1.5″ suppressors and muzzle devices.
• Inside Diameter (Barrel Nut Area): 1.78″ – Designed for Aero’s proprietary M5E1 barrel nut system.
• DPMS High Profile Tang (.210″) – Compatible with DPMS High Profile upper receivers.
• Compatible with Low-Profile Gas Blocks – Ensures easy installation and fitment.
• Weight: 12.8 oz – Balanced for long-barreled or precision rifle setups.
• Gen 2 Enhancements:
  • Integrated QD Sling Sockets – Located at 3, 6, and 9 o’clock positions for flexible sling placement.
  • Enhanced Milling Along Flats – Improves grip texture and aesthetic detail.
  • Refined Continuous Top Rail Profile – Sleeker geometry for a more modern appearance.
• Material: 6061-T6 Aluminum – Lightweight and precision-machined to mil-spec tolerances.
• Finish: Black Hardcoat Anodized (Type III, Class 2) – Corrosion and wear-resistant.

Installation Notes

• Barrel Nut Not Included.
• If installing on a standard threaded M5 upper receiver, you must also purchase the
  Aero Precision M5E1 Handguard Barrel Nut Kit.
• No additional barrel nut is required when using the Aero Precision M5E1 Enhanced Upper Receiver.

Compatibility

• Compatible with Aero Precision M5 and M5E1 (.308) platforms.
• Not compatible with AR15 or M4E1 upper receivers.
• Designed for low-profile gas blocks and most 1.5” suppressors.
