Aero Precision M4E1-T 12.7" ATLAS R-ONE M-LOK Handguard Combo | Black

Aero Precision M4E1-T 12.7″ ATLAS R-ONE M-LOK Handguard Combo | Black

Lightweight, Rigid, and Perfect for AR15 & M4E1 Builds

The Aero Precision M4E1-T 12.7″ ATLAS R-ONE M-LOK Handguard Combo is the ideal starting point for your AR15 or M4E1 build. Engineered for seamless compatibility and reduced weight, this combo pairs Aero Precision’s precision-machined components to deliver strength, reliability, and modern modularity. The ATLAS attachment system provides a slim, streamlined profile with the rock-solid lock-up Aero Precision handguards are known for.

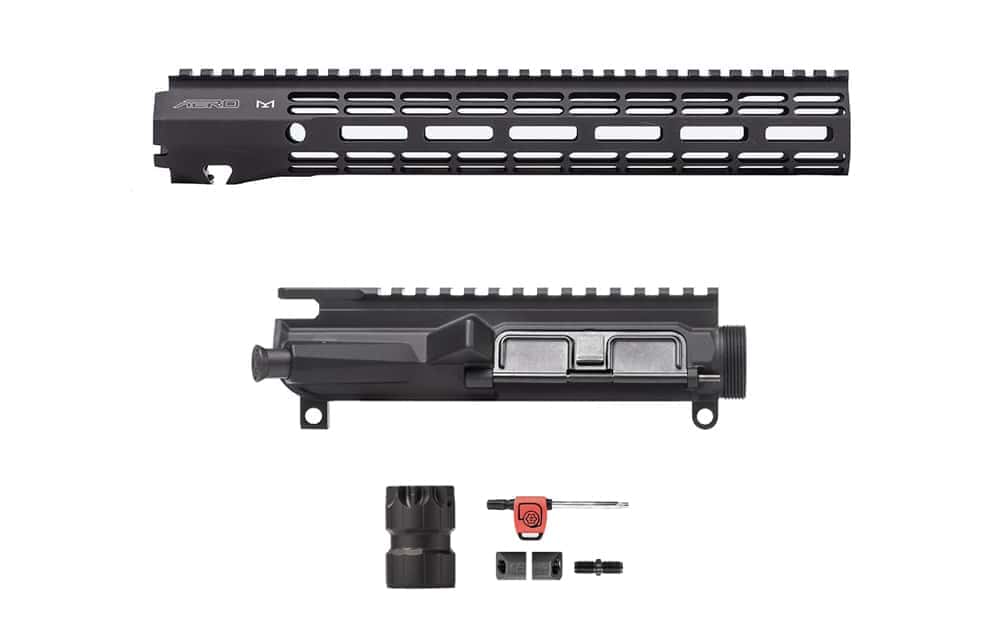

Handguard Combo Includes

• M4E1 Threaded Assembled Upper Receiver – Black Anodized
• 12.7″ ATLAS R-ONE M-LOK Handguard – Black Anodized
• Barrel Nut & Mounting Hardware

ATLAS R-ONE Handguard

The Aero Precision ATLAS R-ONE Handguard is designed to provide lightweight rigidity and secure mounting for modern AR15 builds. The Aero Taper Lock Attachment System (ATLAS) uses two mirrored tapered locking nuts to apply even clamping pressure across a custom-engineered barrel nut using a turnbuckle screw. A ratcheting detent secures the system in place, ensuring precise alignment and eliminating handguard distortion during installation.

Built for balance and performance, the R-ONE Handguard offers a continuous top Picatinny rail, making it ideal for optics, sights, and accessories while maintaining exceptional strength-to-weight ratio.

• Continuous top Picatinny rail for uninterrupted mounting
• Integrated QD sling sockets at 3, 6, and 9 o’clock positions
• Compatible with low-profile gas blocks
• Internal Diameter: 1.3″ | External Diameter: 1.5″
• Finish: Type III Class 2 Hardcoat Anodized – Matte Black
• Material: 6061-T6 Aluminum
• Compatible with Mil-Spec AR15 upper receivers and barrels

M4E1-T Assembled Upper Receiver

The Aero Precision M4E1 Threaded Assembled Upper Receiver comes with both the port door and forward assist pre-installed for easy assembly. Forged from 7075-T6 aluminum and precision-machined to mil-spec standards, this receiver ensures superior strength and alignment. Pair it with an Aero M4E1 lower receiver for a consistent, rock-solid fit across your AR15 platform.

• M4 Feed Ramps for improved reliability
• .250” Takedown Pin Holes for Mil-Spec compatibility
• Laser-engraved T-marks for easy optic alignment
• Includes Port Door and Forward Assist

Compatibility & Notes

• Not compatible with Aero Precision M4E1 Enhanced Upper Receivers.
• ATLAS Handguards are designed to align perfectly with Aero M4E1 Threaded Upper Receivers and Mil-Spec AR15 uppers.
• May not fit billet upper receivers due to indexing tab differences.
• Compatible with standard AR15 barrels and low-profile gas blocks.
• Optimized for 12.5″ barrels for proper clearance and proportional fit.

Precision, Balance & Modern Design

The Aero Precision M4E1-T 12.7″ ATLAS R-ONE M-LOK Handguard Combo combines lightweight rigidity, modern design, and robust performance. Ideal for mid-length AR15 setups or tactical rifle builds, this combo provides the quality, engineering, and precision craftsmanship Aero Precision is known for — making it a go-to choice for builders who demand reliability and consistency.
